Build Your Own Gravity-Fed Water Filter:

A Practical Solution for Clean, Safe Drinking Water

Access to clean drinking water is something most people take for granted—until there’s a problem. Whether it’s aging plumbing, contamination concerns, or emergencies, having a reliable way to purify water at home is becoming less of a luxury and more of a necessity.

This is especially true in older homes, where outdated pipes can introduce rust, sediment, or even harmful contaminants into your water supply. Municipal treatment doesn’t always guarantee purity by the time water reaches your tap. That’s why many homeowners are turning to simple, off-grid solutions that provide peace of mind.

One of the most effective and affordable options is a gravity-fed ceramic water filtration system that you can build yourself.

Why Water Safety Matters in Older Homes?

If your home was built decades ago, your plumbing system may still contain materials that are no longer considered safe. Over time, pipes can corrode, allowing particles and bacteria to enter your water. Even in areas with treated municipal water, issues like pipe degradation, boil advisories, or infrastructure failures can affect quality.

In rural or storm-prone areas, water interruptions or contamination events can happen unexpectedly. Having a backup filtration system ensures that you always have access to safe drinking water—without relying on electricity.

The Power of Ceramic Filtration

Ceramic filtration is a time-tested method that uses a physical barrier to remove contaminants. A 0.5-micron ceramic filter can remove over 99% of bacteria, protozoa, and suspended particles.

Unlike chemical treatments, ceramic filters:

• Preserve beneficial minerals

• Maintain natural taste

• Require no electricity

• are reusable and long-lasting

• When paired with BPA-free, food-grade containers, this system provides a clean and chemically safe way to filter water at home.

Materials You’ll Need: To build your own gravity-fed filtration unit, gather the following materials

• Two 5-gallon food-grade, BPA-free plastic buckets with matching lids

• One 0.5-micron ceramic filter element (with washers and wing nut)

• One water dispenser spigot

• Pre-filter sock (optional but recommended)

• Electric drill

• 3/4-inch drill bit

• 5/8-inch drill bit

Small drill bit (approximately 1/16-inch)

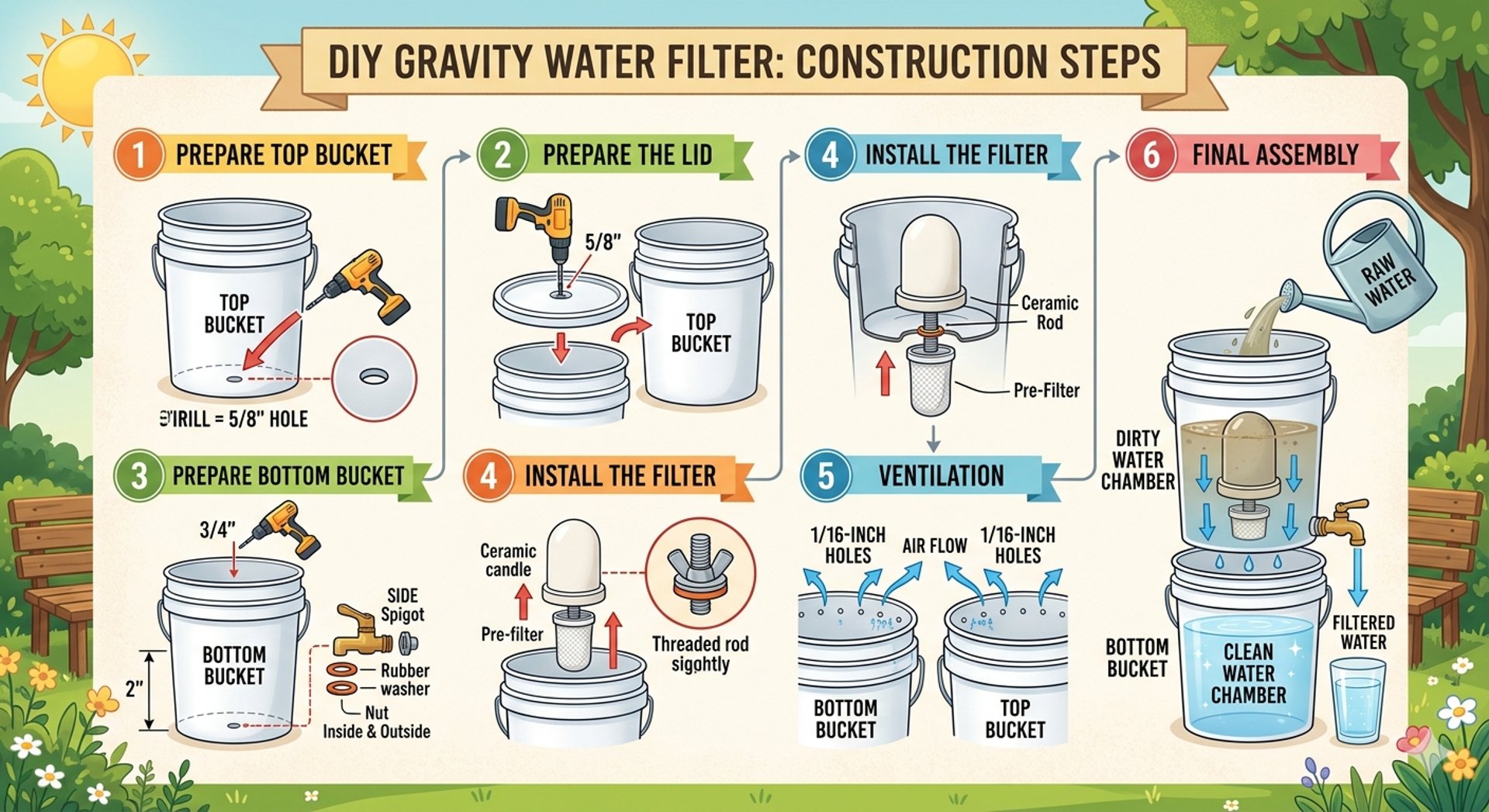

Step-by-Step Construction

1. Prepare the top bucket

2. Drill a 5/8-inch hole through the center of the bottom of one bucket. This will hold the ceramic filter.

3. Prepare the lid

4. Drill a 5/8-inch hole in the center of one lid. This lid will connect with the filter and help stabilize the system.

5. Prepare the bottom bucket

6. Measure about 2 inches up from the bottom rim of the second bucket and drill a 3/4-inch hole. Install the spigot here, placing rubber washers on both the inside and outside to prevent leaks.

7. Install the filter

8. Insert the ceramic filter through the hole in the top bucket and lid. Secure it tightly using the provided washers and wing nut.

9. Add ventilation

10. Drill a few small 1/16-inch holes near the top rim of the bottom bucket. This allows air pressure to equalize and keeps water flowing smoothly.

11. Final assembly

If you have a pre-filter sock, place it over the ceramic filter. Stack the top bucket onto the bottom one, fill with water, and allow gravity to do the work.

How It Works

Water placed in the top bucket slowly passes through the ceramic filter. As it moves through the 0.5-micron pores, contaminants are physically blocked, allowing only clean water to collect in the bottom container. The result is safe, great-tasting water ready to use.

Maintenance and Longevity

To keep your system working efficiently:

Clean the ceramic filter regularly using a clean scrub pad to remove buildup

Wash the pre-filter sock frequently to maintain the flow rate

Keep both buckets covered and in a clean area

Periodically check seals and spigot connections for leaks

With proper care, a ceramic filter can last for thousands of gallons, making it one of the most cost-effective filtration options available.

A Smart Step Toward Water Independence

Building your own gravity-fed water filter is more than just a DIY project—it’s an investment in your health, safety, and independence. Whether you’re dealing with aging infrastructure, preparing for emergencies, or simply wanting better control over your water quality, this system delivers a reliable solution.

In a world where clean water can’t always be guaranteed, having a simple, proven method to purify your own supply puts control back in your hands.

Clean water isn’t just a convenience—it’s security.
